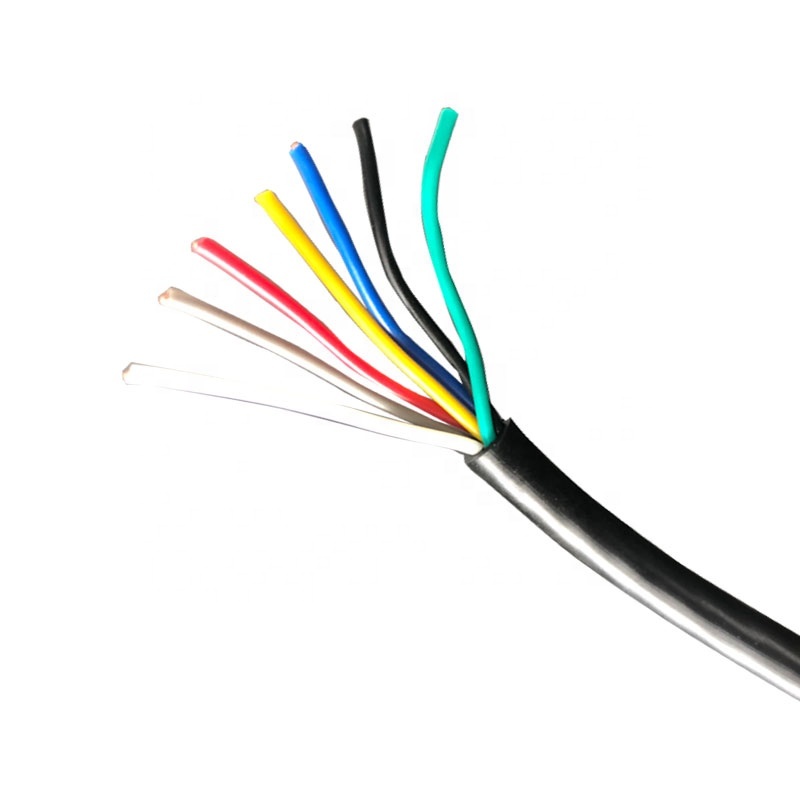

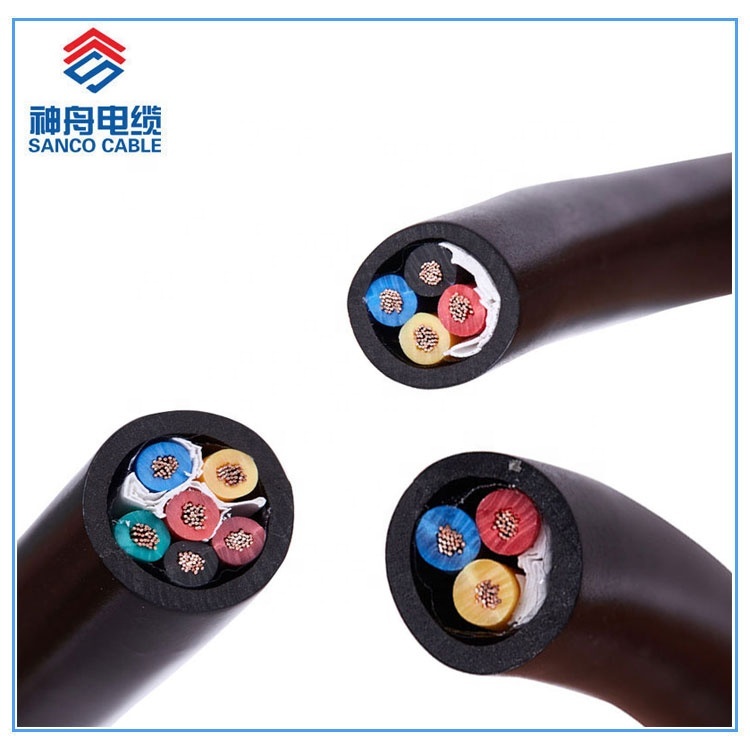

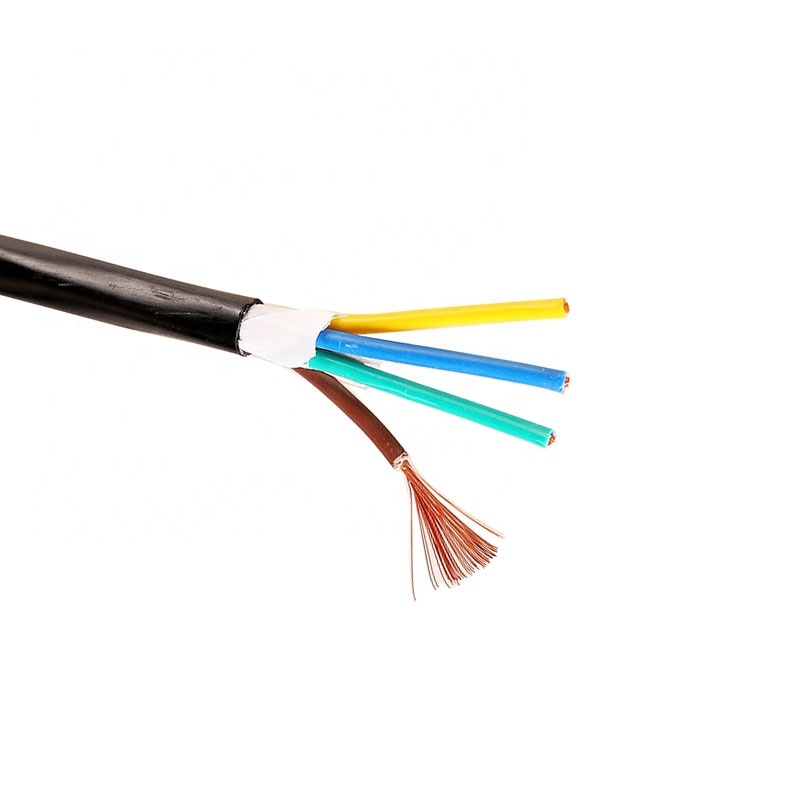

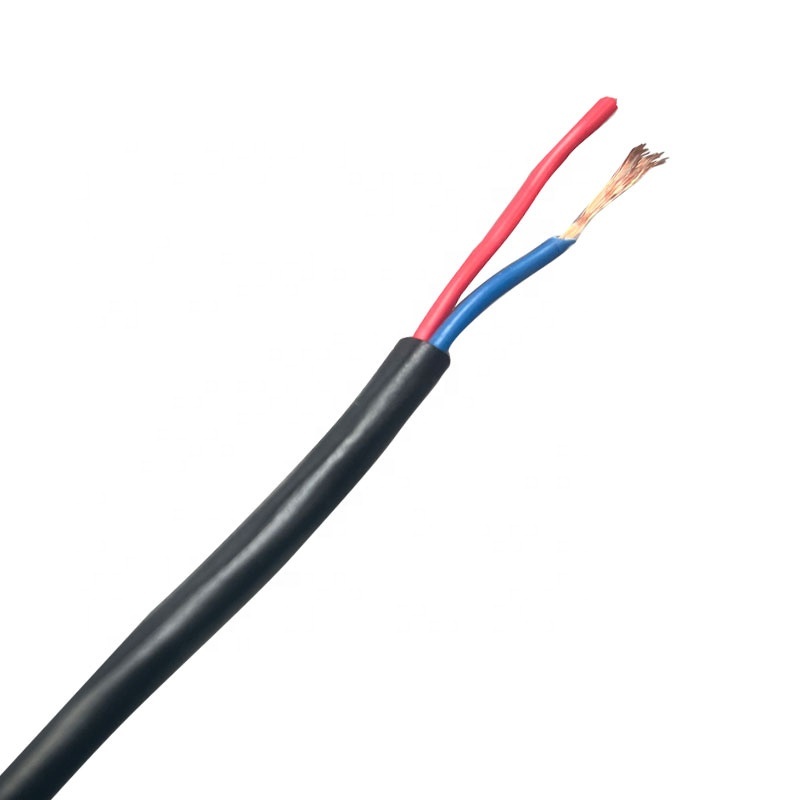

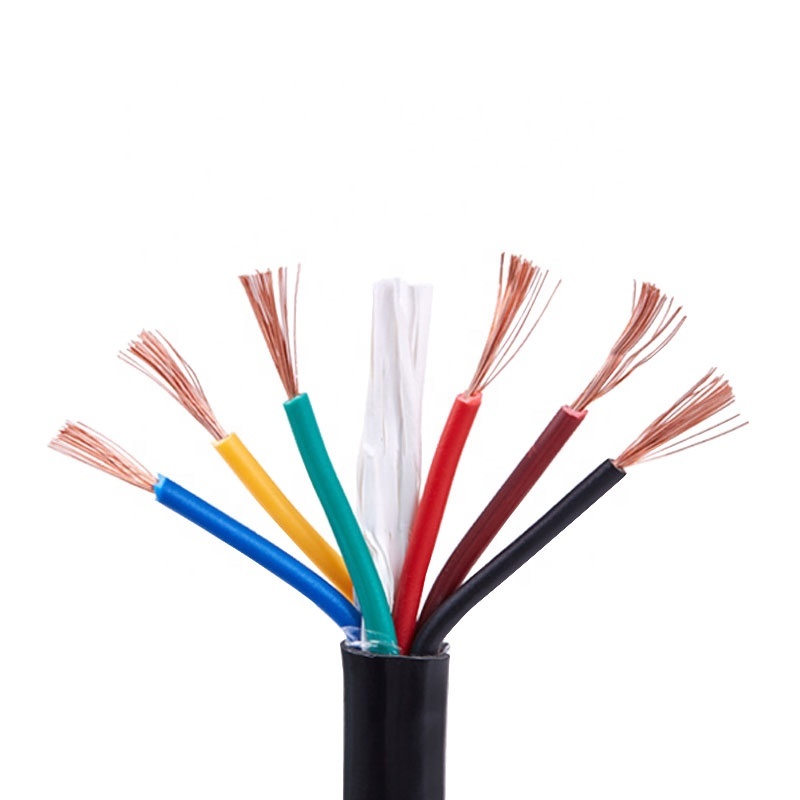

Stranded Copper Multi Cores PVC Insulation Electrical Cable
Specification:
• Sample free • 100% pure copper • 100% virgin cable compound
• Fast delivery time • Reasonable price • More than 20 years experience
Application and Standard:
(1)The flex PVC hook-up wire cable can be produced and provided according to standard IEC60227,BS6004,BS6005.
(2)The flex PVC hook-up wire cable belong to the series of laying wires,which are mainly suitable for laying at the fixed places.They are widesly used as connectors of driving,lighting,electric equipments,instrument and telecommunication equipments with rated voltage to 450/750V.Part of the plastic wires are used at the equipment with AC rated voltage upto 300/500V.
Working condition:
(1)The flex PVC hook-up wire cable working temperature is different according to different insulation materials, mainly 70 and 90 degrees temperature, etc.
(2)Enviroment temperature of laying should be not less than 0℃
(3)Rated voltage U0/U is 450/750V,300/300V,300/350V.
Category:
(1)According to the conductor type, including solid conductor PVC insulated electrical wire cable, standed PVC insulated wire cable, Flexible PVC insulated wire cable with different colors.
(2)According to its shape, including flat wire cable, round wire cable, etc. with different colors.
(3)Accoding to its core number, including single core wire cable, multi-core wires cables , etc. with different colors.
Process Flow:
Specifications:
| Model | Conductor | Insulation | Sheath | Average Outer Diameter | Condutor Max.DC resistance at 20℃ | Mini.insulated Resistance(70℃) | ||||
| RVV | Cores x Nom.Area | Thickness | Thickness | Lower Limit | Upper Limit | Non Metal-coated | Metal-coated | |||
| mm2 | mm | mm | Ω.km | MΩ.km | ||||||
| 2x0.75 | 0.6 | 0.8 | 5.7 | 7.2 | 26 | 26.7 | 0.011 | |||
| 2x1 | 0.6 | 0.8 | 5.9 | 7.5 | 19.5 | 20 | 0.01 | |||
| 2x1.5 | 0.7 | 0.8 | 6.8 | 8.6 | 13.3 | 13.7 | 0.01 | |||
| 2x2.5 | 0.8 | 1 | 8.4 | 10.6 | 7.98 | 8.21 | 0.009 | |||
| 3x0.75 | 0.6 | 0.8 | 6.0 | 7.6 | 26 | 26.7 | 0.011 | |||
| 3x1 | 0.6 | 0.8 | 6.3 | 8.0 | 19.5 | 20 | 0.01 | |||
| 3x1.5 | 0.7 | 0.9 | 7.4 | 9.4 | 13.3 | 13.7 | 0.01 | |||
| 3x2.5 | 0.8 | 1.1 | 9.2 | 11.4 | 7.98 | 8.21 | 0.009 | |||
| 4x0.75 | 0.6 | 0.8 | 6.6 | 8.3 | 26 | 26.7 | 0.011 | |||
| 4x1 | 0.6 | 0.9 | 7.1 | 9.0 | 19.5 | 20 | 0.01 | |||
| 4x1.5 | 0.7 | 1.0 | 8.4 | 10.5 | 13.3 | 13.7 | 0.01 | |||
| 4x2.5 | 0.8 | 1.1 | 10.1 | 12.5 | 7.98 | 8.21 | 0.009 | |||
| 5x0.75 | 0.6 | 0.9 | 7.4 | 9.3 | 26 | 26.7 | 0.011 | |||
| 5x1 | 0.6 | 0.9 | 7.8 | 9.8 | 19.5 | 20 | 0.01 | |||
| 5x1.5 | 0.7 | 1.1 | 9.3 | 11.6 | 13.3 | 13.7 | 0.01 | |||
| 5x2.5 | 0.8 | 1.2 | 11.2 | 13.9 | 7.98 | 8.21 | 0.009 | |||
|
Name |
3 Core Stranded Copper RVV Electrical Wire Cable |
|
Core Numbers |
3 Cores, 4 Cores, 5 Cores.. |
|
Size |
0.75mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2 |
|
Conductor |
Copper Conductor |
|
Insulation |
PVC Insulated |
|
Rated Voltage |
300/300V, 300/500V |
|
Color |
Black, White, Blue, Yellow, Red, Green.. |
