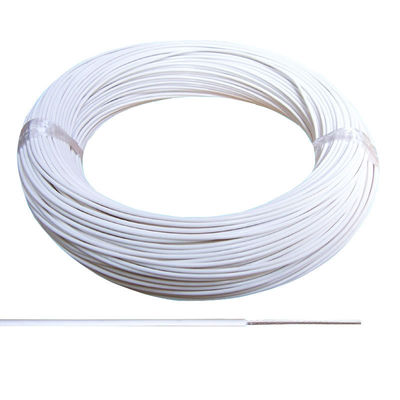

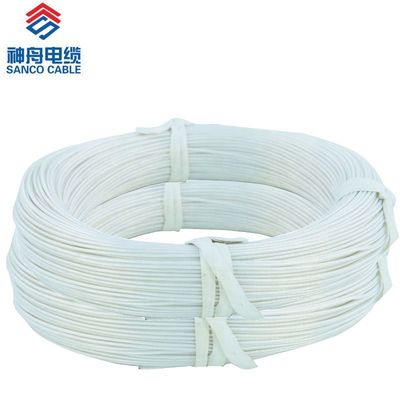

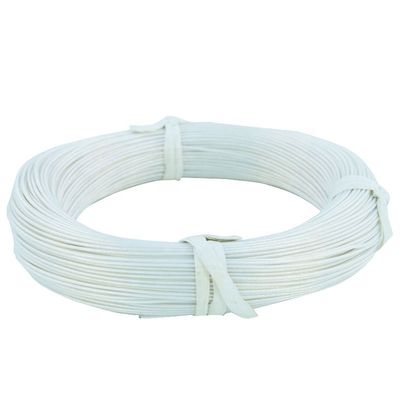

PTFE Wire is ideal for oil equipment, electric machinery, automotive cables, outdoor lighting, PTC thermistors, and various electrical components.
This PTFE Cable serves multiple purposes including temperature compensating wire, low temperature-resistant wire, high temperature heat wire, aging-resistant wire, and fire-resistant wire. It's widely used in household appliances such as air-conditioning equipment, microwave ovens, electric disinfectant cupboards, electric cookers, electric thermoses, electric heaters, electric ovens, and various lighting fixtures.
| Specification | Details |
|---|---|
| Conductor Materials | Silver Plated Copper or Bare Copper |
| Conductor Type | Stranded or Solid |
| Insulation | PTFE, FEP, PFA Insulated |
| Number Core | Single Core or Multiple Cores |
| Size | 0.05~4mm² |
| Rated Voltage | 600V or Below |
| Rated Temperature | -80~+250ºC |

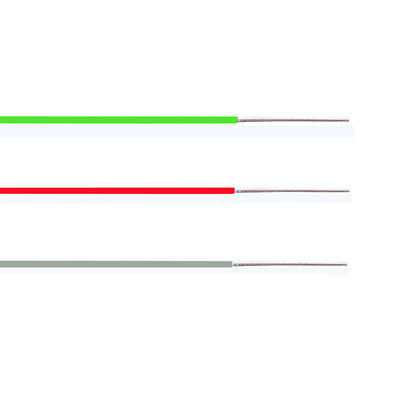

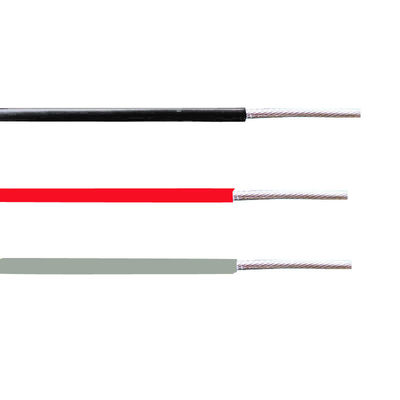

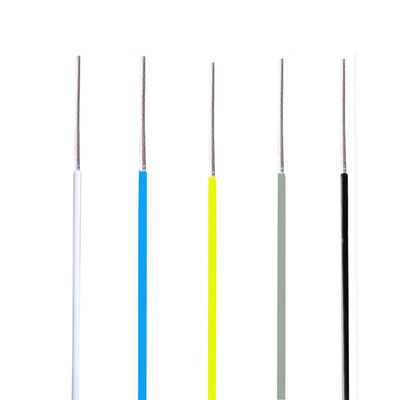

| Color | White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |
| Type | Name |
|---|---|
| AFR-200 | Bare Copper wire conductor PTFE film insulated lead wire |
| AFR-250 | Silver plated copper wire conductor PTFE film insulated lead wire |
| AFP | Bare Copper wire conductor PTFE film insulated screen lead wire |
| AFP-1 | Silver plated copper wire conductor PTFE film insulated screen lead wire |
| AFRP-200 | Bare Copper wire conductor PTFE film insulation shield lead wire |
| AFRP-250 | Silver plated wire copper conductor PTFE film insulation shield lead wire |
| AFRPF-250, AFPF | Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire |
| Nominal Section (mm²) | Conductor Construction (No/mm) | Insulation Thickness (mm) | Outer Diameter (mm) | D.C. conductor resistance at 20ºC(Ω/km) |
|---|---|---|---|---|
| 0.05 | 10/0.08 | 0.3 | 0.9 | 383 | 370 |
| 0.06 | 7/0.10 | 0.3 | 0.9 | 348 | 339 |
| 0.08 | 7/0.12 | 0.3 | 0.96 | 286 | 280 |
| 0.1 | 7/0.14 | 0.3 | 1.02 | 157 | 150 |
| 0.12 | 7/0.15 30/0.07 | 0.3 | 1.05 | 152 | 145 |
| 0.14 | 7/0.16 19/0.10 | 0.3 | 1.08 | 136 | 130 |
| 0.15 | 30/0.08 | 0.3 | 1.1 | 111 | 105 |
| 0.2 | 7/0.02 19/0.12 | 0.3 | 1.2 | 87 | 82 |
| 0.35 | 19/0.16 | 0.3 | 1.4 | 57 | 54 |
| 0.5 | 19/0.18 | 0.3 | 1.5 | 40 | 37.5 |
| 0.8 | 19/0.23 | 0.32 | 1.79 | 24 | 23 |
| 1 | 19/0.26 | 0.35 | 2 | 21 | 20 |
| 1.2 | 19/0.28 | 0.45 | 2.3 | 19 | 18 |
| 1.5 | 19/0.32 | 0.45 | 2.5 | 13 | 12 |
| 2 | 19/0.37 | 0.45 | 2.75 | 10 | 9 |
| 2.5 | 37/0.30 | 0.55 | 3.2 | 8 | 7 |
| 3 | 37/0.32 | 0.68 | 3.6 | 6.8 | 6.4 |
Note: High temp electrical wire core specifications can be customized according to requirements.
Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military, with 21 years of experience. We produce our own cable compounds, which enables us to maintain superior quality and competitive pricing for global customers.
Our main products include: High Temperature wires, PTFE Wire, FEP Wire, PFA Wire, ETFE Wire, Fluoroplastic Cables, Hook up wire, electronic cable, and Power cable. We have advanced production facilities and integrated management systems, and collaborate with universities and research institutes to develop customized cable solutions.
A: We are a professional manufacturer, researching, developing and selling military and consumer cable wire and cable compound. The company is located in Hunan Province, China.
A: We are a stable wire and cable supplier of China's aerospace and military, with 21 years experience. We produce our own cable compounds, which enables us to maintain superior quality and competitive offers for global customers.
A: Quality is our priority. We implement strict quality control from design and materials procurement through manufacturing and final product inspection to ensure consistent quality.
A: We provide 1 year complete warranty service. If products have quality problems, we will replace or return them unconditionally.
A: We can prepare sample orders. For small quantities available in stock, we can provide samples free of charge, with the customer responsible for freight costs.
