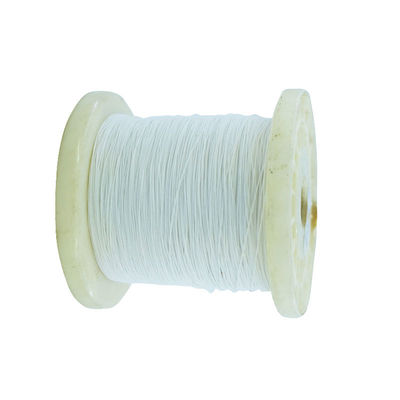

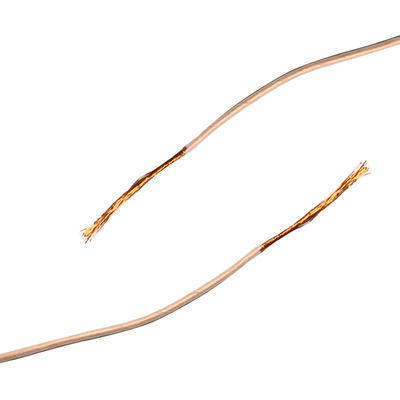

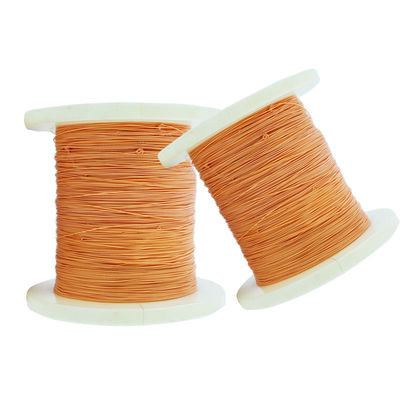

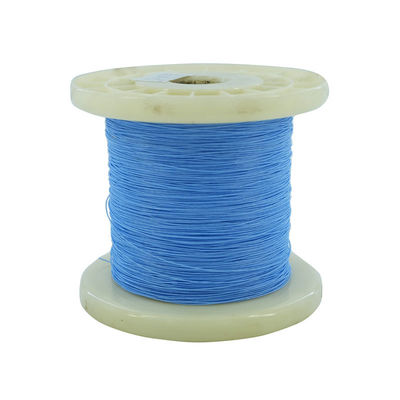

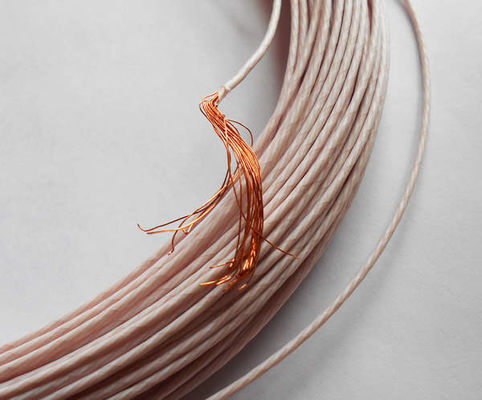

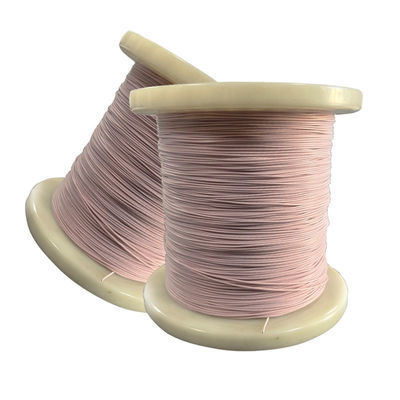

0.35mm² Heat Resistant PTFE Tape Wrap Wire
PTFE wrapping wire is a high-performance electrical wire insulated with polytetrafluoroethylene (PTFE), a synthetic fluoropolymer with exceptional thermal and chemical resistance. Ideal for demanding applications in aerospace, medical devices, and electronics, this wire offers superior protection against heat, moisture, and chemicals while maintaining flexibility for easy handling and installation.
Key Features:
- Excellent corrosion resistance
- Resistant to oils, strong acids, alkalis, and oxidants
- Superior electrical insulation properties with high voltage resistance
- Moisture-resistant with high insulation resistance
- Flame-retardant and anti-aging properties
- Long service life
Technical Specifications:
| Parameter | Specification |
| Conductor Materials | Silver Plated Copper or Bare Copper |
| Conductor Type | Stranded or Solid |
| Insulation | PTFE, FEP, or PFA Insulated |
| Number of Cores | Single Core or Multiple Cores |
| Size Range | 0.05~4mm² |
| Rated Voltage | 600V or Below |
| Temperature Range | -80°C to +200°C |
| Available Colors | White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |
Product Types:
| Type | Description |
| AFR-200 | Bare Copper wire conductor PTFE film insulated lead wire |
| AFR-250 | Silver plated copper wire conductor PTFE film insulated lead wire |
| AFP | Bare Copper wire conductor PTFE film insulated screen lead wire |
| AFP-1 | Silver plated copper wire conductor PTFE film insulated screen lead wire |
| AFRP-200 | Bare Copper wire conductor PTFE film insulation shield lead wire |
| AFRP-250 | Silver plated wire copper conductor PTFE film insulation shield lead wire |
| AFRPF-250, AFPF | Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire |
Detailed Specifications:
| Wire Gauge | Cross-section | Conductor Structure | Max. OD (mm) | Reference Weight (kg/km) |
| 36AWG | 0.013mm² | 7/0.05 | 0.57 | 0.44 |
| 32AWG | 0.035mm² | 7/0.08 | 0.67 | 0.73 |
| - | 0.05mm² | 10/0.08 | 0.72 | 0.91 |
| - | 0.07mm² | 14/0.08 | 0.75 | 1.16 |
| - | 0.1mm² | 21/0.08 | 0.85 | 1.57 |
| 26AWG | 0.12mm² | 24/0.08 | 0.85 | 1.66 |
| - | 0.14/0.15mm² | 30/0.08 | 0.9 | 2.07 |
| 24AWG | 0.2mm² | 42/0.08 | 1 | 2.72 |
| - | 0.25mm² | 56/0.08 | 1.1 | 3.47 |
| 22AWG | 0.3mm² | 62/0.08 | 1.18 | 4.2 |
| - | 0.35mm² | 75/0.08 | 1.2 | 4.7 |
| 20AWG | 0.5mm² | 63/0.1 | 1.45 | 5.36 |
| - | 0.75/0.80mm² | 91/0.1 | 1.69 | 8.19 |
| 18AWG | 1mm² | 56/0.15 | 1.95 | 10.9 |
Note: Extruded PTFE cable core numbers and specifications are not limited to the above regulation. Custom specifications are available upon request.
About Xiangtan Shenzhou Special Cable Co., LTD
As a stable wire and cable supplier for China's aerospace and military sectors with 21 years of experience, we manufacture our own cable compounds to ensure superior quality and competitive pricing. Our product range includes high temperature wires, PTFE/FEP/PFA wires, fluoroplastic cables, hook up wires, electronic cables, and power cables. With advanced production facilities and strong partnerships with universities and research institutes, we offer customized cable solutions to meet specific requirements.
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer specializing in research, development, and sales of military and consumer cable wire and cable compounds, located in Hunan Province, China.
2. What is your company's strengths?
As a stable supplier to China's aerospace and military sectors with 21 years of experience, we manufacture our own cable compounds to maintain superior quality and competitive pricing.
3. How do you guarantee your product quality?
Quality is our top priority, with strict controls implemented throughout the entire process from design and material procurement to manufacturing and final inspection.
4. What's the warranty of your products?
We provide a 1-year complete warranty service, offering unconditional replacement or return for any quality issues.
5. How can I get the samples?
We can prepare sample orders, and for small quantities available in stock, we provide free samples with the customer responsible for freight costs.
