ホーム /製品/PTFEはワイヤーを絶縁した/High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors

High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors

100
MOQ
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
導体材料: SPC
断熱材: PTFE
定格電圧: AC 220V
導体タイプ: 立ち往生
ワイヤーゲージ: 28AWG
作業温度: -60℃〜 +250℃
コア番号: シングルコア
パッキングの長さ: 305M/Roll
シールド材料: 缶詰の銅線
直径: 0.08mm
カラーオプション: 11色
導体抵抗: 低抵抗
断熱の厚さ: PTFEフィルム
柔軟性: 良い
重さ: ライト
ハイライト:

0.08mm PTFE SPC Wire

,

250 Degree Resistance PTFE Insulated Wire

,

11 Colors High Temperature Wire
基本情報
起源の場所: 中国湖南
ブランド名: Sanco cable
モデル番号: AFR-250
お支払配送条件
製品の説明

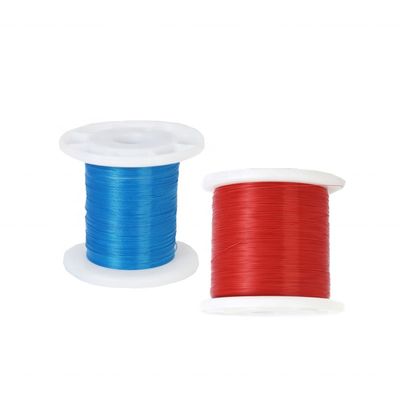

High Temperature 0.08mm 28AWG PTFE SPC Wire
Product Description
High Temperature PTFE SPC Wire is an electrical wire insulated with PTFE film, offering exceptional resistance to high temperatures, chemicals, and excellent electrical insulation properties. Designed for demanding environments, this wire maintains performance in aerospace, automotive, and industrial applications where reliability is critical.
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 0
Specifications
Application Internal wiring for electronic equipment, electrical appliances, and instruments
Advantages
  • Small outer diameter and lightweight
  • Excellent flexibility and easy to weld
  • High temperature resistant and anti-aging
  • Anti-interference properties

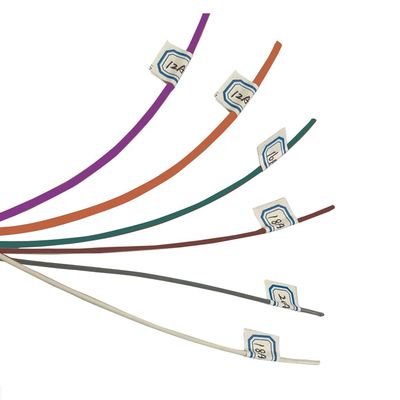

Available Colors Black, brown, red, orange, yellow, green, blue, purple, gray, white, and transparent
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 1
Conductor Silver plated copper wire
Insulation PTFE
Conductor Type Stranded
Working Temperature -60℃ to +250℃
Rated Voltage AC 220V
Wire Gauge 36awg~3/0awg
Core Number Single Core
Packing Length 305m/roll
Free Sample Yes
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 2
Company Profile
Shenzhou Special Cable is a leading manufacturer of custom wires and cables, specializing in high temperature wires (PTFE, PFA, FEP, ETFE), robot cables, crane cables, and drag chain cables. Our products serve aerospace, robotics, oil fields, wind power, rail locomotives, and electronics industries.
With over 20 years of experience, we've supplied products for China's National Rocket and Manned Space Engineering Programs. Our certifications include weapons equipment quality management system, ISO9001, and CCC.
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 3
Our Manufacturing Capabilities
  • 7,000+ sqm standard factory with 14 production lines
  • High quality imported raw materials for better chemical and heat resistance
  • Annealed pure copper conductors with low resistance
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 4
Quality Control
  • 1,500+ sqm professional testing laboratory
  • Advanced cable testing equipment
  • Professional QC team
  • Comprehensive pre-shipment testing including annealing, tensile, conductor resistance, and insulation thickness tests
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 5
Why Choose Us
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 6
20+ years of special cable R&D and manufacturing experience
Certified by CCC, Weapons and Equipment, and ISO9001
Trusted supplier for China's aerospace and military
Advanced cable testing equipment
Low MOQ for custom cables
Free samples and design services available
1-3 year warranty period
Packing & Delivery
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 7

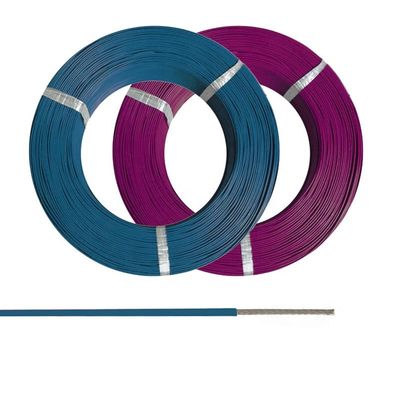

  • Packing in roll with carton boxes
  • Packing in spool with carton boxes
  • Packing with barrel or pallet
  • Packing in wooden tray
Contact Us
High Temperature 0.08mm 28AWG PTFE SPC Wire with 250 Degree Resistance and 11 Colors 8
